DTCTH: a discriminative local pattern descriptor for image classification

A large number of techniques such as GIST, SIFT, HOG, LBP, CLBP, LGP, LTP, LAID, and CENTRIST have been proposed for image classification. These techniques capture texture patterns of an image. In this section, a brief description on all of these techniques are highlighted.

2.4 Local binary pattern (LBP)

Ojala et al. first explore original LBP operator which thresholds n×n (e.g., 3×3) neighborhood of every pixel of an image with the center pixel value and considers the result as a binary number [1]. Each of the image pixel is then labeled with the corresponding decimal value of that binary number. The basic LBP is calculated using Eq. 1.

$$ \begin{aligned} \text{LBP}_{{n,r}}(x_{c},y_{c})&={\sum{_{l=0}^{n-1}}}q(\,p_{l}-p_{c})2^{l},\\ \text{Where}\,\, q(d) &=\left\{\begin{array}{ll} 1, &\quad {if} \, \, d \geq 0 \\ 0, &\quad {otherwise} \end{array}\right. \end{aligned} $$

(1)

Here, n and r are the total number and the radius of the neighboring pixels. (x _c ,y _c ) is the coordinate of the center pixel c, p _l , and p _c are the intensities of the l ^{t h} neighboring and the center pixel (c) respectively. d is the difference between the neighboring and the center pixel. LBP codes can represent spatial micro-structures such as edge, corner, and line-end. Figure 3 presents some of these patterns.

LBP has 256 codes when eight neighbors are considered, which can be reduced to 59 codes by taking uniform patterns. The uniform patterns are calculated by Eq. 2.

$${} \begin{aligned} U(\textrm{LBP}_{n,r} (x_{c},y_{c}))&= | q(p_{n-1}-p_{c}) - q(p_{0}-p_{c}) |\\ &\quad+ \sum{_{l=1}^{n-1}} | q(p_{l}-p_{c}) - q(p_{l-1}-p_{c}) | \end{aligned} $$

(2)

Till date, SIFT [30] is one of the most successful descriptors in different image processing applications such as scene and object classification. However, one of its major drawbacks is computational cost. Tola et al. propose DAISY descriptor which achieves computational gain by convolving orientation maps using Gaussian kernel [45]. They have used circular regions instead of regular grids where the radius is proportional to the standard deviation of the Gaussian kernel. Comparing different types of spatial pooling scheme, Brown et al. conclude that DAISY style pooling shows better accuracy while keeping lower computational cost [46]. Histogram of second order gradient (HSOG) adopts DAISY pooling, which at first computes a set of first order gradient maps (OGM), then second order gradient is calculated over all OGMs [9], resulted in the increase of both computational cost and accuracy.

SIFT and its variants can capture salient features using key-point descriptors [47], while HOG and its variants use magnitude as weight to deteremine the significance level of saliency in a particular direction. These processes can differentiate background and foreground information implicitly. However, in both cases, the computational cost could have been reduced, if the basic descriptor itself were able to identify the salient regions. Besides, most of these methods do not consider human visual perception to distinguish between background and foreground information. Moreover, a gradient-based method may fail to differentiate two different textures having the same gradient direction [38].

LBP and its variants [2, 13, 14, 17–20, 41] can capture local microstructures exploring different types of thresholds. These methods are commonly used for different applications such as face detection [15, 16], human detection [38], object, scene, event [48], face [13, 14], gender [20], and facial expression recognition [18, 49] for their convincing accuracy and lower computational cost. In most of the cases, an image is divided into several blocks where LBP-like codes are calculated and then histogram of these codes are calculated for each of these blocks. Finally, these histograms are concatenated to form the final feature vector. A similar but effective variant of this process is described in [18] where Shan et al. use LBP for facial expression recognition adopting boosted SVM. However, the basic LBP only uses sign information. Recently, CLBP is proposed which combines the sign and magnitude to extract more useful information [44] because the combination of sign and magnitude components can provide better clues, which are not evident if only a single component is considered individually [21]. Zhu et al. [40] propose orthogonal combination of local binary pattern (OC-LBP) which reduces the dimensionality of the basic LBP from 2 ^P to 4×P. Due to considering four orthogonal neighbors for each OC-LBP code, this method fails to capture prominent textures even compared to LBP. However, the classification performance is boosted by incorporating bag of features with dictionary learning which increases computational cost. A recent variant of LBP is local direction number pattern (LDN) [50], which performs well in face and expression recognition. LDN encodes the structure of a local neighborhood by analyzing its directional information. Consequently, LDN computes the edge responses in the neighborhood in eight different directions with a compass mask which also introduce extra computational burden.

Recently, Ren et al. have proposed data-driven LBP (DDLBP) for low-level image representation, which is formulated as a point selection problem, that is solved by maximal joint mutual information criterion [39]. This problem is converted into a binary quadratic programming problem and solved efficiently via the branch and bound algorithm. Hussain et al. address that existing local pattern descriptors using hand-specified coding limits those to small spatial supports and coarse gray-level comparisons and introduce local quantized pattern (LQP) which uses lookup table-based vector quantization to code larger or deeper patterns [51]. LQP inherits some of the flexibility and power of visual-word representations, without sacrificing the speed and simplicity of existing local patterns.

Inspired by the LBP and its variants, several ternary pattern-based methods such as LTP [2], NTTP [3], and LAID [42] are also introduced. In NTTP [3], the authors define an adaptive noise band to handle the influence of noise and use two types of thresholds for two different types of intensity regions. For low-intensity region, a constant threshold “ τ” is used. However, defining the low-intensity region is not trivial. Again, τ needs to be set for a particular application and can vary from application to application. Such a setup might work for a particular application and thus it is necessary to find a proper threshold that can be used in general. LAID [42] is a recently explored local ternary pattern for texture classification which uses median of the local neighboring differences as a threshold. However, it may be affected by the non-linear property of median. For example, the median of [0, 1, 1, 2, 3, 4, 17, 18] is 2 or 3, as a result small differences (e.g., 3, 4) and large differences (e.g., 17, 18) will get the same code which is not expected. Such a scenario (also the opposite scenario [1, 2, 15, 16, 17, 17, 18, 19]) may commonly occur in many applications and thus results in inconsistent code. Hence, LAID may perform well for a particular application but might not be applicable in general.

Different from LBP, Gabor wavelet feature [52, 53] is one of the major approaches in terms of generality and performance in facial expression recognition. Gu et al. exploit Gabor feature for facial expression recognition which extends the radial encoding strategy for Gabor features based on retinotopic mapping that helps to obtain salient local features for facial expression representation [53]. Another feature descriptor using wavelet theory is distinctive efficient robust features (DERF) which utilizes exponential scale distribution, exponential grid structure, and circularly symmetric function difference of Gaussian as convolutional kernel [54]. DERF outperforms SIFT, HOG, and DAISY. However, Gabor-based methods and DERF are quite expensive in terms of computational cost.

On top of the basic features, there are few approaches which are used for mid- or high-level image representation [55–58]. Among these, Li et al. propose a high-level image representation named as object bank (OB) which describes an image as a scale-invariant response map of a large number of pre-trained generic object detectors [55]. Deformable part-based model (DPM) is introduced by Pandey and Lazebnik which uses latent SVM for classifying object and scene categories [56]. Besides these, Yang et al. propose spatial pyramid co-occurrence (SPCK ++), which calculates spatial co-occurrences of visual words in a hierarchical spatial partitioning [57]. SPCK ++ captures both the absolute and relative structure of an image by combining local co-occurrences with global partitioning. Image-to-class (I2C) distance is first used in NBNN [59] for image classification, which needs higher computational cost for nearest neighbor search in the testing phase. Recently, Wang et al. improve the discrimination of I2C distance especially for small number of local features by learning per-class Mahalanobis metrics [58].

For high-level representation, sparse coding-based approaches have shown better performance in image classification which usually adopt SIFT for low-level feature extraction. One of the first successful techniques is ScSPM [60] which uses sparse coding instead of vector quantization of SIFT descriptors. This technique adopts spatial max pooling (MP) of ScSPM features in regular SIFT grids for final feature representation. ScSPM performs better than both linear SPM kernel (LSPM) on histograms and traditional nonlinear SPM kernels with linear SVM (LSVM) because the pooling of sparse codes quantizes only the essential features which is linearly separable by SVM. However, ScSPM solves L1-norm optimization problem which is computationally expensive [61]. Moreover, it is non-consistent to encode similar descriptors [61, 62]. Several modifications have been proposed for these problems [61–63]. For instance, Wang et al. propose a modification of ScSPM by considering locality constraints in linear coding (LLC) to project each descriptor into its local-coordinate system where projected coordinates are amalgamated by MP [62]. Moreover, ScSPM, LLC, and most of the other sparse coding-based methods suffer from a severe drawback, which is the quantization of similar local features into different visual words [63]. To mitigate this problem, Oliveira et al. introduce sparse spatial coding (SSC) for image classification which combines a sparse coding dictionary learning, a spatial constraint coding, and an online classification stage [63]. The authors represent the final feature vector by adopting MP in SSC features. Most of the sparse coding techniques [60, 62] are adopted on local features independently which consider the global similarity by constraint sparsity. However, dense local features share some local contextual information which is discarded by the existing sparse coding-based techniques and become less reliable when adopting spatial pooling [61]. To address this problem, a locality-constrained and spatially regularized (LCSR) coding is proposed by considering local spatial context of an image into the usual coding strategies which preserves locality constraints both in the feature space and spatial domain of the image [61]. The information loss in the feature quantization through pooling is still found, though several coding methods are introduced to address this problem. Wang et al. use linear distance coding (LDC) to alleviate this problem, which is a complementary technique to the traditional sparse coding schemes [64]. In their approach, local features of an image are transformed into discriminative distance vectors and then encodes these distance vectors into sparse codes to capture the salient features of the image.

Motivated by the sparse coding-based approaches, Gao et al. propose kernel sparse representation for image classification which performs sparse coding in a high-dimensional feature space mapped by implicit mapping function [65]. Afterwards, by combining these features with SPM, the authors propose Kernel Sparse Representation Spatial Pyramid Matching (KSRSPM). Besides this approach, Gao et al. [66] explore another sparse coding-based approach (LScSPM) by considering the instable sparse code produced by different sparse coding techniques [60, 62]. The authors use Laplacian sparse coding framework to address this issue. To reduce the high computational cost of dense kernel descriptors, efficient match kernel (EMK) is introduced which maps local features to a low-dimensional feature space and average the resulting vectors to form a set-level feature [67].

Apart from sparse coding-based methods, several approaches use soft-assignment coding [12, 68]. For example, Gemert et al. [12] introduce soft-assignment of codewords using kernel density estimation which assigns local features to all the visual codewords [68]. Comparing with other existing coding schemes, soft-assignment coding is simple and has low computational cost. However, the major drawback is that it cannot produce comparable result with other coding schemes [68]. Liu et al. address that the inferiority of soft-assignment coding is because of its negligence to the underlying manifold structure of local features and propose a localized soft-assignment coding (LSA) [68]. They use mix-order max pooling (MMP) instead of general MP which helps to boost the performance.

Along with the aforementioned supervised learning techniques, several unsupervised learning techniques are also used in computer vision. For example, Bosch et al. [34] introduce a semi-supervised learning (SP-pLSA) by combining the unsupervised probabilistic latent semantic analysis (pLSA) [69] and a discriminative classifier for image classification. Here, pLSA is applied to the images which are represented by the frequency of visual words where color SIFT is used as a basic descriptor. Recently, deep learning-based unsupervised technique of feature learning is adopted that does not require manual intervention. This approach has gained popularity because of its better accuracy. Using multiple levels of representation and abstraction, it helps a machine to understand about data (e.g., images, sound, and text) more accurately. In deep learning frameworks, first, unsupervised feature learning is performed on a large image dataset and then the weights of the deep network is adjusted. Eventually, a model is built that can later be used to solve a particular problem which is known as fine tuning. Among the existing popular models, AlexNet [70], Places-CNN [71], and VGG_S [72] are widely used because they cover diversified applications. Despite the gain of popularity of deep learning, it is very computation intensive and requires expensive hardware and large set of training data. Furthermore, a well-defined network structure is also required to solve a particular set of problems which is challenging and usually fix up empirically.

The mid- or high-level feature representation aims to capture strong spatial layouts, encodes salient textures, and makes those working with linear classifier [56, 60, 62]. To achieve the aforementioned properties, these methods incorporate different steps such as generative part models [59, 73], discriminative codebook learning [68, 74], sparse coding [60, 62, 66], and/or spatial pooling [62]. The incorporation of these steps lead to increase in computational cost. However, if it is possible to incorporate these issues to the basic feature descriptor, it may reduce the huge computational cost of the mid-/high-level representation.

Apart from these levels (low, mid, and high) of representations, classifiers also play an important role in classification accuracies, such as SVM with different kernels (e.g., linear, polynomial and RBF kernel) are used for classification in various applications [7, 17, 18, 50]. In general, although RBF kernel produces better results in many applications, its computational cost is high. A fast and effective classification is thus necessary which can be achieved in two ways such as by selecting relevant features where nonlinear relationship of features is already incorporated and then use LSVM, or by introducing a low-cost nonlinear kernel of SVM. Maji et al. [75] introduce a fast non-linear kernel of SVM namely histogram intersection kernel which achieves better classification accuracy in many applications [76]. Zhang et al. propose a hybrid classification technique (SVM-KNN) which selects features using k nearest neighbors [77] and classify using DAGSVM [78] classifier. SVM-KNN has low computational cost and performs well when the test image is similar to one of the training images. However, this technique fails to generalize much beyond the labeled images because of calculating image-to-image distance. Recently, to perform fast and better classification, Jianxin Wu [79] introduces PmSVM, which solves a dual SVM formulation using a coordinate descent approach. PmSVM approximates the gradient using polynomial regression instead of the kernel function and feature mapping.

From the above discussion, it can be seen that most of the existing techniques attempt to capture the salient textures that are stable against different lighting conditions, noises, intensity fluctuations which help to clearly represent necessary foreground information. For this purpose, these approaches either include preprocessing such as keypoint identification before generating descriptor or postprocessing such as different costly high-level representations. However, the computational cost of these approaches can be reduced if it is possible to identify the prominent features using only the basic low-level descriptors. Therefore, it is desirable to come up with a mechanism that can identify prominent features in a low-level descriptor.

In this paper, we propose a new feature descriptor named as discriminative ternary census transform histogram (DTCTH) for image representation which holds most of the key properties of a feature descriptor. The overall process of the construction of descriptor is described in the following subsections.

4.2 Discriminative ternary census transform histogram (DTCTH)

The overall process of DTCTH calculation is shown in Fig. 5. For producing different codes for certain and uncertain changes of intensities in an image, we consider ternary coding scheme, namely discriminative census transform (DCT) which is calculated using Eq. 10.

$$ \begin{aligned} \text{DCT}_{n,r}(x_{c},y_{c})&=\sum{_{l=0}^{n-1}}q(p_{l}-p_{c})3^{l},\\ \text{Where}\; q(d) &=\left\{\begin{array}{rl} +1, &\quad {if} \, \, \, d \geq T\\ -1, &\quad {if} \, \, \, d \leq -T \\ 0, &\quad {otherwise} \end{array}\right. \end{aligned} $$

(10)

Here, T is a dynamic threshold, n and r are the total number of neighbors and the radius of the neighboring pixels respectively, and (x _c ,y _c ) is the coordinate of the center pixel. p _c and p _l are the intensities of the center pixel c and l ^{t h} neighboring pixel. For simplicity and computational efficiency, the ternary pattern is divided into two census transformed images namely upper (D C T_U P) and lower (D C T_L P) pattern which are calculated using Eqs. 11 and 12. Figure 6 shows a pictorial example of DCT calculation. Afterwards, two separate histograms such as H_D C T U P and H_D C T L P of these two binary patterns are calculated using Eqs. 13 and 14. The final feature vector is represented by concatenating these histograms.

$$ \begin{aligned} DCT\_UP_{n,r}(x_{c},y_{c})&= \sum{_{l=0}^{n-1}}q(p_{l}-p_{c})2^{l}, \\ \text{Where}\; q(d)&=\left\{\begin{array}{ll} 1, &\quad {if} \, \, \, d \geq T \\ 0, &\quad {otherwise} \end{array}\right. \end{aligned} $$

(11)

$$ \begin{aligned} DCT\_LP_{n,r}(x_{c},y_{c})&= \sum{_{l=0}^{n-1}}q(p_{l}-p_{c})2^{l},\\ \text{Where}\; q(d)&=\left\{\begin{array}{ll} 1, &\quad {if} \, \, d \leq - T\\ 0, &\quad {otherwise} \end{array}\right. \end{aligned} $$

(12)

$$ \begin{aligned} H\_DCTUP^{k}&=\sum{_{i=0}^{h-1}}\sum{_{j=0}^{w-1}} \delta_{DCT\_UP_{n,r}(i, j)}^{k}, \\ \text{Where}\;\delta_{p}^{k}&=\left\{\begin{array}{ll} 1, &\quad {if} \, \, p = k\\ 0, &\quad {otherwise} \end{array}\right. \end{aligned} $$

(13)

$$ \begin{aligned} H\_DCTLP^{k}&=\sum{_{i=0}^{h-1}}\sum{_{j=0}^{w-1}} \delta_{DCT\_LP_{n,r}(i, j)}^{k}, \\ \text{Where}\;\delta_{p}^{k}&=\left\{\begin{array}{ll} 1, &\quad {if} \, \, \, p = k\\ 0, &\quad {otherwise} \end{array}\right. \end{aligned} $$

(14)

Here, D C T_U P _n,r (i,j) and D C T_L P _n,r (i,j) are the upper and lower DCT codes of coordinate (i, j). k is the k ^{t h} bin of the histogram. h and w are the height and width of the image block. Kronecker delta \(\delta _{p}^{k}\) is a piecewise function of p and k. As DCT encodes only local micro-structures of spatial location, spatial pyramid representation (SPM) which is used in CENTRIST, is adopted to capture the global structures of an image.

4.3 Determining the value of T

During the calculation of DTCTH, for every pixel of an image, we have eight different values that are obtained by calculating the differences (∣δ∣) from its neighbors. We want to partition these values into two groups using a threshold such that the variance is maximized between the groups and is minimized within the group. The purpose of this partitioning is that the group with lower values can be considered as background where the group with higher values as foreground, in the local scope. A solution of this partitioning problem can be found using Jenks natural breaks optimization method [80, 81]. However, such an optimization is very time consuming as we have to apply the method for each pixel of an image to generate the respective code. Furthermore, Jenks natural breaks optimization is not designed to comply with Weber’s constant though the combination of these two is expected to increase the accuracy. Under these circumstances, after exhaustive empirical analysis (on 10⁹ samples), we set the value of T to the square root of the center pixel in a local ternary pattern. We have found that such a choice of T brings about the closest possible similarity which is around 84.90%, to the aforementioned optimization problem considering Weber’s constant. Thus, we can conclude that taking the square root of the center pixel is a very close approximation of the desired threshold with much low computational cost.

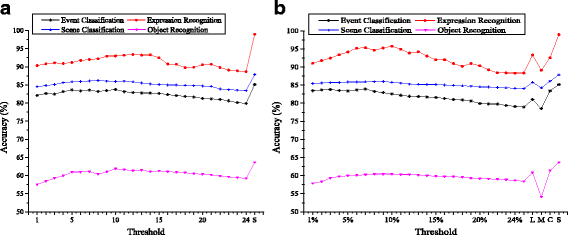

For validating the value of T, we have performed rigorous experiment on four different applications with four datasets using different values of T. The dataset includes Caltech-101 [73] (102 classes and 9,145 images) for object classification, UIUC Sport Event [33] (8 classes and 1586 images) for event classification, OT scene [10] (8 classes and 2688 images) for scene classification, and Cohn Kanade [82] (6 classes and 960 images) for expression recognition. We consider both the fixed and dynamic thresholds to determine the value of T. From the experiments, we observe that the accuracy is decreased for the values greater than 20, and hence, we consider the values up to 25, both in fixed and dynamic cases. The mean and median of the differences among the neighboring pixels and the center pixel, SQRT, and cube root of the center pixel are also considered. Figure 7 a shows the accuracy of different fixed thresholds and square root threshold, and Fig. 7 b illustrates the accuracy of different dynamic thresholds, as mentioned earlier. From Fig. 7, it is found that T is defined as SQRT of center pixel and performs best for all applications. Using McNemar’s test, we observe that the proposed SQRT threshold resulted in significantly fewer mis-classifications than other thresholds (maximum P value, P=0.001 and minimum P value, P=3.83932E−28).

4.4 Properties of DTCTH

DTCTH encodes micro-structures such as line, edge, and corners which are stable against intensity fluctuation and monotonic illumination variation. Some of these properties are described in the following.

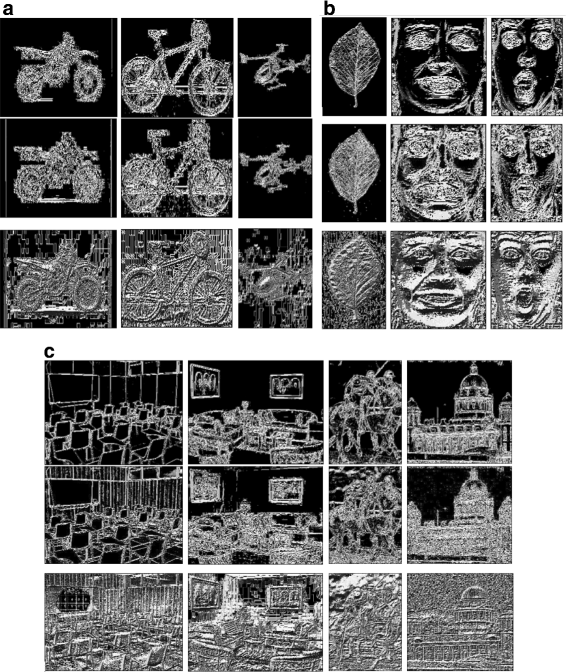

DTCTH captures more relevant part of an image that are necessary for recognizing an object/scene. To understand this, let us consider Fig. 4 which includes examples from three different applications. Now, if we only have the Sobel images where all fine details are suppressed and only the class-specific information is retained then it will help a classifier to achieve better accuracy. Likewise, if we analyze the images in Fig. 8, we can easily find that DTCTH suppresses most of the background information keeping the necessary details compared to the others. As the proposed technique have this property, it is more generalized compared to other descriptors.

DTCTH features are more robust to noise, and it produces stable code by adapting the intensity fluctuations in local neighborhood. For example, CENTRIST and LBP fail to produce the same code in case of intensity fluctuation (see Fig. 1), whereas DTCTH is successful in this case (i.e., “00000000”). Furthermore, we add white Gaussian noise to the original images as shown in Fig. 9 to test the robustness to noise of DTCTH. Now, if we compare the coded images with or without noises for DTCTH and CENTRIST, we can easily find that DTCTH is more robust to noise and thus can capture the face specific feature by eliminating the details.

Besides these, for certain intensity changes in positive and negative directions, DTCTH produces two different codes for these two directions which is desired because from this type of representation, we can get more detailed information about the local micro-structure of an image. For example, in Fig. 10, DTCTH produces three different codes for aforementioned three groups of codes following Eq. 9 such as uncertain state (i.e., 0 for 71 and 69), intensity changes in positive direction (i.e., 1 for 80, 81 and 79), and negative direction (i.e., −1 for 61, 60, and 60) in certain regions by considering 70 as the center pixel.

To understand the effect of human visual perception in case of DTCTH, we require a reference value to measure the change in intensity. Since DTCTH uses the center pixel for calculating code, we use the same reference point for measuring Weber’s constant. For example, in Fig. 10, the Weber’s constant for the neighboring pixels 71 and 69 with the center pixel 70 is 0.01, which is below the Weber’s constant for human visual perception [43]. Hence, these two neighbors are coded as “0.” Similarly, 79 and 61 have the Weber’s constant of 0.13; hence, these two pixels are coded as “1” and “-1” due to the changes in two different directions which is expected. From Fig. 11, it is understandable that the smooth regions (e.g., cheek area) are coded similarly and the codes for +v e and −v e directions contain complementary information (e.g., eyebrow and mouth regions).

In this section, we evaluate the performance of DTCTH by comparing with the other state-of-the-art methods over nine datasets that belong to five different applications such as object, scene, event, leaf, and facial expression classification. Application wise descriptions of the experiments are discussed in the following.
