Augmented Reality for Art, Design and Cultural Heritage—System Design and Evaluation

  • Jurjen Caarls1Email author,
  • Pieter Jonker1, 2,
  • Yolande Kolstee3,
  • Joachim Rotteveel2 and
  • Wim van Eck3
EURASIP Journal on Image and Video Processing20092009:716160

DOI: 10.1155/2009/716160

Received: 31 January 2009

Accepted: 16 November 2009

Published: 27 December 2009

Abstract

This paper describes the design of an optical see-through head-mounted display (HMD) system for Augmented Reality (AR). Our goals were to make virtual objects "perfectly" indistinguishable from real objects, wherever the user roams, and to find out to which extent imperfections are hindering applications in art and design. For AR, fast and accurate measuring of head motions is crucial. We made a head-pose tracker for the HMD that uses error-state Kalman filters to fuse data from an inertia tracker with data from a camera that tracks visual markers. This makes on-line head-pose based rendering of dynamic virtual content possible. We measured our system, and found that with an A4-sized marker viewed from at 5 m distance with an SXGA camera (FOV ), the RMS error in the tracker angle was when moving the head slowly. Our Kalman filters suppressed the pose error due to camera delay, which is proportional to the angular and linear velocities, and the dynamic misalignment was comparable to the static misalignment. Applications of artists and designers lead to observations on the profitable use of our AR system. Their exhibitions at world-class museums showed that AR is a powerful tool for disclosing cultural heritage.

1. Introduction

This paper describes the design of an optical see-through head-mounted system for Augmented Reality (AR) and its quantitative and qualitative performance. Augmented Reality is a technique that can be placed in the so-called mixed reality continuum [1], with at one far end the real world that dominates the perception (Reality) and the other end the virtual world that dominates the perception (Virtual Reality); see Figure 1.
Figure 1

Mixed reality continuum.

In contrast with Virtual Reality (VR), where a complete virtual world must be created, in AR usually only virtual objects or avatars are added to the real world as the rest of the world is the real world. In this paper we focus on mobile immersive AR, which implies that a headset is worn in which the real world view is augmented with virtual objects.

Since in VR only the virtual world is shown, walking with a headset in this world is difficult because the user has little clue in which direction he walks. In Video-See-Through AR the user perceives the real and virtual world by looking at displays in front of his eyes, whereas the merging of both worlds is performed by the digital mixing of video data from the virtual content and the real world. The real world is perceived by two video cameras placed directly before the displays in front of the user's eyes. A problem in this setup is that the real world looks pixilated, that the entire field of view of a person must be covered by the displays, and that the displaying of the real world usually has a delay of one or more hundreds of milliseconds, which might cause motion sickness when walking (for some people), since there is a mismatch between visual information, the information from the inner ear and the information from the muscles [24].

In Optical-See-Through AR the real world information and the virtual world information is merged through optical mixing using half-translucent prisms. The benefit of this setup is that headsets can be made that are open, as we did in our project. As with normal glasses that people wear, one can also look underneath and left and right of the glasses, relaxing the "scuba-diving" feeling. Since the real world is not delayed at all and one can also look below the displays, walking is in general no problem.

In contrast with Video-See-Through, the real world can only be suppressed by increasing the illumination level of the virtual objects, which is of course limited. Creating dark virtual objects in a bright real world is hence cumbersome.

The biggest problem in AR is to exactly overlay the real and virtual world. This problem has some analogy with color printing, where the various inks must be exactly in overlay to obtain full color prints. However, in AR this is a 3D problem rather than a 2D problem and, worse, the human head can move rapidly with respect to the real world. A first solution was worked out in 1999 [5] after which we refined this in later phases [6, 7]. We used one or more visual markers, with known size, position, and distances to each other, which can be found and tracked by a measurement camera on the headset. In order to cope with fast head movements that the camera cannot follow, the head pose data from the camera was merged with data from an inertia tracker. This setup is in analogy with the visual system-inner ear combination of humans. In 2004 HITLab published the AR-Toolkit [8] that used the same type of markers as well as a WebCam in which AR on the computer screen can be displayed. Recently it has been made fit for web-based and iPhone-3GS-based applications.

The ultimate goal of our research, which started in 1998, was to design an immersive, wearable light-weight AR system that is able to provide stereoscopic views of virtual objects exactly in overlay with the real world: a visual walkman, equivalent to the audio walkman. Note, however, that with an audio walkman the virtual music source (e.g., an orchestra) turns with the user when the user turns his head. Using visual anchor points like markers, both virtual visual and virtual audio data can be fixed to a specific location in the real world.

Figure 2 shows our current system that evolved during the past decade and that we evaluated during the last three years in real applications.
Figure 2

Wearable Augmented Reality System.

We measured its accuracy and performance in our laboratory using an industrial robot and in order to get a feeling how the system performs in real life, we tested it with artists and designers in various art, design, and cultural heritage projects in museums and at exhibitions.

The possibilities of immersive AR for applications are plentiful. It can be fruitfully used in area development, architecture, interior design, product design, as it may diminish the number of mock-ups and design changes in too late stage of the process. It can be used for maintenance of complex machines, and possibly in future for medical interventions. A main benefit of AR is that new designs or repair procedures can be shown in an existing environment. Its future possibilities in online gaming and tele-presence are exiting. Our initial application idea was to provide a tool for guided tours and a narrative interface for museums. Hence, with the AR system, one must be able to easily roam through indoor environments with a head-tracking system that is largely independent of the environment.

Similar AR systems exist already, such as LifePLUS [9] and Tinmith [10] but they use video-see-through methods which makes registration easier but at the cost of loss of detail of the world. Other projects like BARS [11] and MARS [12] use optical-see-through methods but do not care for precise pose tracking or do not use a camera for tracking.

In the remainder of this paper we describe the technical setup of our system (Section 2) and its application in art, design, and cultural heritage projects (Section 3).

2. AR System Design

2.1. Main System Setup

Figure 3 shows the components of the system. It consists of an optical-see-through AR headset Visette 45SXGA from Cybermind [13], a Prosilica CV 1280 camera [14], and an MTx inertia tracker from XSens [15]. A backpack contains the control box for the headset, LiPo batteries [16], and a Dell Inspiron 9400 laptop [17] with video outputs for the left and right images, running Ubuntu [18]. This hardware was selected to make the system wearable and at the same time powerful enough for many different applications. The Visette45 is the most affordable high resolution (1280 1024) stereo OST HMD with an opening angle of .
Figure 3

Main components of the AR system.

The Prosilica firewire camera was chosen for its high resolution and the MTx is one of the most used inertia trackers available. We chose the Dell Inspiron laptop as it had enough processing and graphics power for our system and has usable dual external display capabilities, which is not common.

Note that Figure 2 shows a prototype AR headset that, in our project, was designed by Niels Mulder, student of the Postgraduate Course Industrial Design of the Royal Academy of Art with as basis the Visette 45SXGA.

Off-line virtual content is made using Cinema-4D [19]; its Open-GL output is online rendered on the laptop to generate the left and right-eye images for the stereo headset. The current user's viewpoint for the rendering is taken from a pose prediction algorithm, also online running on the laptop, which is based on the fusion of data from the inertia tracker and the camera, looking at one or more markers in the image. In case more markers are used, their absolute positions in the world are known. Note that also markers with no fixed relation to the real world can be used. They can be used to represent moveable virtual objects such as furniture.

For interaction with virtual objects a 5DT data glove [20] is used. A data-glove with RFID reader (not shown here) was made to make it possible to change/manipulate virtual objects when a tagged real object is touched.

2.2. Head Pose Tracking

The Xsens MTx inertia tracker [15] contains three solid state accelerometers to measure acceleration in three orthogonal directions, three solid state gyroscopes to measure the angular velocity in three orthogonal directions, and three magnetic field sensors (magnetometers) that sense the earth's magnetic field in three orthogonal directions. The combination of magnetometers and accelerometers can be used to determine the absolute 3D orientation with respect to the earth. The inertia tracker makes it possible to follow changes in position and orientation with an update rate of 100 Hz. However, due to inaccuracies in the sensors, as we integrate the angular velocities to obtain angle changes and double integrate accelerations to obtain position changes, they can only track reliably for a short period. The error will grow above 10 to 100 meter within a minute. This largest error is due to errors in the orientation that leads to an incorrect correction for the earth's gravitational pull. This should be corrected by the partial, absolute measurements of the magnetometers, as over short distances the earth's magnetic field is continuous; but this field is very weak and can be distorted by metallic objects nearby. Therefore, although the magnetic field can be used to help "anchoring" the orientation to the real world, the systematic error can be large depending on the environment. We measured deviations of 50° near office tables. Hence, in addition to the magnetometers, other positioning systems with lower drift are necessary to correct the accumulating errors of the inertia tracker.

A useful technique for this is to use visual information acquired by video cameras. Visual markers are cheap to construct and easily mounted (and relocated) on walls, doors, and other objects. A marker has a set of easy detectable features such as corners or edges that enable recognition of the marker and provide positional information. Many different marker types exist, circular [21] or barcode like [22]. We chose a marker with a rectangular border to be able to easily detect and localize the marker and chose a 2D barcode as its identity is detectable even when the marker is very small (Figure 4).
Figure 4

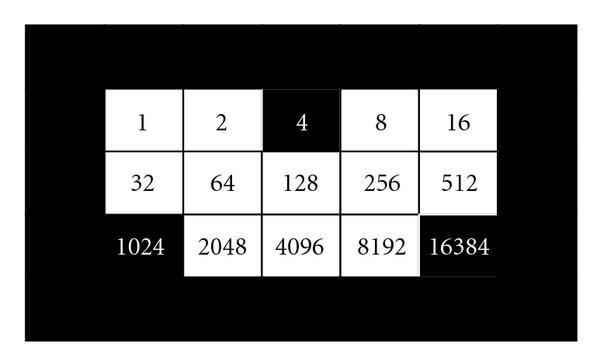

A marker; ID=4+1024+16384=17412.

If the marker is unique, then the detection of the marker itself restricts the possible camera positions already. From four coplanar points, the full 6D pose can be calculated with respect to the marker with an accuracy that depends on the distance to the marker and on the distance between the points. In case more markers are seen at the same time, and their geometric relation is known, our pose estimation will use all available detected points in a more precise estimation. In a demo situation with multiple markers, the marker positions are usually measured by hand.

Tracking is not restricted to markers, also pictures, doorposts, lamps, or all that is visible could be used. However, finding and tracking natural features, for example, using SIFT [23, 24], GLOH [25], or SURF [26] comes at a cost of high process times (up to seconds as we use images of 1280 1024), which is undesirable in AR due to the possibility of a human to turn his head very quickly. To give an impression: in case of a visual event in the peripheral area of the human retina, after a reaction time of about 130 ms in which the eye makes a saccade to that periphery, the head starts to rotate accelerating with to a rotational speed of to get the object of interest in the fovea. When the eye is tracking a slow moving object (smooth pursuit) the head rotates with about [27, 28].

Moreover, sets of natural features have to be found that later enable recognition from various positions and under various lighting conditions to provide position information. The biggest issue with natural features is that their 3D position is not known in advance and should be estimated using, for instance, known markers or odometry (Simultaneous Localization And Mapping [29, 30]). Hence, we think that accurate marker localization will remain crucial for a while in mobile immersive AR.

2.3. Required Pose Accuracy

The question rises what should be the accuracy of a tracking system if we want to have adequate alignment of virtual and real objects. For an eye with a visual acuity of about , looking through a head-mounted display at 10 cm distance with an opening angle of , we actually need a resolution of about pixels. As our HMD has pixels the maximum accuracy we can obtain is one pixel of our display, which translates to roughly or 0.5 mm at 1 meter distance of the eye. Hence, currently an AR user at rest will always perceive static misalignment due to the limitations of the HMD. Dynamically, we can present virtual objects on our HMD at a rate of 60 Hz. Assuming instantaneous head pose information from the pose measuring system, and assuming head movements in smooth pursuit we obtain a misalignment lag of . If we assume head motions as reaction on attention drawing, we obtain a temporary misalignment lag due to head movements of . Consequently, with the current headset technology the user will inevitably notice both static and dynamic misalignment due to head motion. Reasoning the other way around, the extra dynamic misalignment due to the current headset cannot be noticed (less than the static misalignment) if we rotate our head with less than . Concluding, the target accuracies for our pose measurement system are based on the accuracies for the pose of virtual objects that can be realized by the current HMD and we can distinguish three scenarios.
  1. (i)

    A static misalignment of 0.0 , that is, a position misalignment of 0.05 cm of a virtual object at 1 m.


  2. (ii)

    A dynamic misalignment of 0. when smoothly pursuing an object, that is, a temporal position error of  cm of a virtual object at 1 m.


  3. (iii)

    A dynamic misalignment of 2. when another event in the image draws the attention and the head rotates quickly, that is, a position error of 4.3 cm of virtual object at 1 m.



These are theoretical values. Given the flexible and versatile human vision system users might not find these errors disturbing. We address this in Section 3.

2.4. Camera-Only Tracking

Below we describe our methods to calculate the pose of a camera from an image of a known marker. Our aim was to use as few markers as possible, ultimately a single marker seen from quite a distance. Hence, we also use a lens with a very large opening angle of . We investigated the influence of image noise and parameters such as line thickness and marker size on the accuracy of the estimated pose. We used a rectangular pattern with a big black border on a white field with inside a 2D barcode to identify the individual markers [7, 8] (see Figure 4). Figure 5 shows the real-time image processing steps that we use to track the pose of the camera with respect to a marker.
Figure 5

Image processing of the markers.

To minimize latency we need fast methods. Therefore, we first detect candidate markers (single closed contours) using a Canny edge detector, with a fixed threshold on the gradient to suppress noise from the imaging system. While following the edges in the Canny algorithm we keep track of connected edge points and count the number of points that are not part of a line (end-points, T crossings, etc.). Only contours with no special points (single closed contour) are interesting.

Then we search for corners only along these contours and keep contours with four corners. The corners are found by using a modified Haralick-Shapiro corner detector [31, 32]. As the gradients are high on the edge, we only need a threshold on their circularity measure and search for local maxima of that measure along the edge. After splitting the contour in the four segments, we find the accurate location of the edge points, correct for lens distortions, and fit a line through each segment. The intersections of the lines give an unbiased location of the four corners needed for pose estimation. Other corner detectors as [3133] did not perform well as they need either a large patch around the corner (impairs speed and makes them less robust against nearby other edges) or have a bias in their estimate. To reach our unbiased estimate we had to correct the location of the edge points for lens distortion prior to fitting the lines.

Accurate edge-point locations are crucial to find accurate corner points; hence, we must eliminate systematic errors and noise as well as possible [34, 35]. Using the step-edge model (Gaussian blurred edge)
(1)

we can calculate the edge location accurately from three pixels centered on and perpendicular to the edge. To increase processing speed we evaluate three pixels along the horizontal or vertical direction, depending on which one is most perpendicular to the edge.

Where usually the gradient magnitudes are used to find the location as the top of a parabola, we use the logarithm of the gradients. This makes sure that the parabolic profile assumption is valid for sharp images as well, and an unbiased estimate for the edge location of our model edge is obtained. In an experiment with a linearly moving edge the bias in location was measured to be up to 0.03 px without the logarithm, and 0.01 px with the logarithm.

We first investigated the influence of the thickness of the black border on our step-edge locator. We found that when the black border is thicker than 8 pixels in the image, the edge points on the outer contour of the border can be located with practically zero bias and an RMS error 0.01 pixel using integer Gaussian derivative operators with a scale of 1.0 px. We use integer approximations of the Gaussians because of their fast implementations using SIMD instructions. Using simpler derivatives, this bias will stay low even at a thickness of 3–5 pixels; however, this error is then symmetrically dependent on the subpixel location of the edge. If a large number of points are used for fitting a line through the edge-points—usually 12–30 points are used—the bias error can be regarded as a zero mean noise source, but for short edges the fit will have an offset. We tried several edge detectors/locators and in the presence of noise, the most accurate and robust detector was using an integer Gaussian derivative filter with the three gradient magnitude values to calculate the edge position not from neighboring pixels but from pixels at a distance of two pixels, provided that the line thickness was big enough.

We used this detector but with three neighboring pixels as we expect line thicknesses of near five pixels (markers at a few meters distance). The detector to use in other situations should be chosen on basis of the expected line thickness and noise, for example, marker distance, marker viewing angle, and illumination (indoor/outdoor) circumstances.

We then determined the size of the marker pattern that is needed when it should be detected at 5 m distance under an angle of . With a 5-pixel line thickness and leaving pixels for the black and white blocks, the minimum size of a marker is  cm, fitting on A4. The bias per edge location will then be between 0.01 and 0.04 pixels, depending on the scale of the edge. When the camera is not moving, the scale is 0.8 pixels corresponding to a bias of 0.01 pixels. Because the edge location has only a small bias, the error of our algorithm is noise limited, and in the absence of noise, it is model limited.

We then verified our step-edge model and found that it fits well to experimental data. We still found a bias of around 0.004 pixel and an RMS error around 0.004 pixel as well. This bias we attribute to the small error we still make in assuming a Gaussian point spread function of the imaging system. When the Contrast to Noise Ratio— —is around 26 dB, the standard deviation of the edge location is 0.1 pixel. This is also the residual error of the saddle points after a lens calibration.

When the CNR is higher, the biggest source of error in our experimental setup seems to be the (model of the) lens. In order to be able to use a pinhole camera model, we tried to calibrate all distortions away, but even with an elaborate lens distortion model we obtained a residual calibration error of 0.37 pixel maximum (standard deviation 0.1 pixel). We found an increased blurring at the borders of the image, suggesting lens artifacts. In photography, these artifacts are minimized using more elaborate lens systems. More research is needed to investigate how to further reduce this systematic error, with a better lens (model) as a starting point. Our lens distortion model is given by
(2)

with = ; and denote distorted/undistorted metric sensor plane coordinates. This model performs better in our case than the other models we tried [3639]. The parameters were estimated using the Zhang calibration method [38].

We found that we can detect the contours of a marker robustly down to a CNR of 20 dB and now we only need to worry about the detection of the four corners along these contours. The Haralick-Shapiro corner detector [31, 32] is the least sensitive to noise while it performs well along the Canny edge, and we found it can be used with CNR ratios higher than 20 dB. Along the edge we can reliably detect corners with an angle of less than . When the CNR is 25 dB, corners can be detected up to . Corner angles of and relate to marker pitch angles of and , respectively. To realize our target of detecting the marker up to pitch angles of , we need the CNR to be around 25 dB.

For online estimation of the pose from four corners we used a variation of the Zhang calibration algorithm; only the external parameters need to be estimated. Using static measurements to determine the accuracy of our pose estimation algorithm we determined that the position of a marker in camera coordinates is very accurate when the marker is on the optical axis at 5 m, that is, less than 0.5 mm in and , and less than 1 cm along the optical axis. The marker orientation accuracy, however, highly depends on that orientation. The angular error is less than ( due to noise) when the marker pitch is less than at 5 m. When we convert the marker pose in camera coordinates to the camera pose in marker coordinates, the stochastic orientation error results in an error in position of 2.7 cm/m. With a pitch larger than , the orientation accuracy is much better, that is, less than ( due to noise), resulting in a stochastic positional error of the camera of less than 0.9 cm/m. Hence, markers can best be viewed not frontally but under a camera pitch of at least .

Finally, with this data, we can determine the range where virtual objects should be projected around a marker to achieve the required precision for our AR system. We found that with one marker of size  cm (at 1.5 m–6 m from the camera), a virtual object should not be projected at more than 60 cm from that marker in the depth direction, or within 1 m from that marker in the lateral direction to achieve the target accuracy of error in the perceived virtual object position.

2.5. Camera Data Fused with Inertia Data

We need fast inertia data to keep up with fast head movements. However, cheap solid-state inertia trackers build up severe pose errors within a second. Consequently, these pose measurements should be corrected using the much slower but more stable camera pose data that is acquired by locking onto features of markers in the real world. We used an inertia tracker fixed onto a camera. Our sensor fusing Kalman filter [40, 41] combines the absolute pose estimate from the camera with acceleration sensors, angular velocity sensors and magnetic sensors to get a better estimate of the HMD pose. The Kalman filter is also necessary to interpolate the pose in-between the slow pose estimates from the camera. Figure 6 shows the problem we encounter when we fuse pose data from the camera with pose data from the inertia tracker. The inertia pose data has a frequency of 100 Hz. The camera with image processing has an update rate of about 15 Hz. Note that the online viewpoint-based rendering costs also time. The Kalman filter with inertia tracker data can be used to predict the head pose at the precise moment we display the virtual objects precisely aligned on the headset.
Figure 6

Fusion of data from camera and inertia tracker.

From now on, we refer to the pose of the camera with respect to a marker at a certain point in time as its state. This state does not only include the position and orientation of the camera at that point in time, but also its velocity and angular velocity, and where necessary their derivatives. The error state is the estimation of the error that we make with respect to the true state of the camera.

Our fusion method takes latencies explicitly into account to obtain the most accurate estimate; other work assumes synchronized sensors [42, 43] or incorporates measurements only when they arrive [44] ignoring the ordering according to the time of measurement.

Our filter is event based, which means that we incorporate measurements when they arrive, but measurements might be incorporated multiple times as explained next.

We synchronize the camera data with the filter by rolling back the state updates to the point in time at which the camera has acquired its image. We then perform the state update using the camera pose data and use stored subsequent inertia data again to obtain a better estimate of the head pose for the current point in time, and to predict a point of time in the near future, as we need to predict the pose of the moving head at the moment in time that the image of the virtual objects are projected onto the LCD displays of the headset. In this way, we not only get a better estimate for the current time, but also for all estimates after the time of measurement; this was crucial in our case as camera pose calculations could have a delay of up to 80 ms, which translates to 8 inertia measurements.

A Kalman filter can only contribute to a limited extend to the total accuracy of the pose estimates. The estimate can only be made more accurate when the filter model is accurate enough; that is, that the acceleration/angular speed is predictable, and that the inertia sensors are accurate enough. A bias in the sensors—for instance caused by a systematic estimation error or an unknown delay in the time of measurement—will prevent the filter from giving a more accurate result than the camera alone. We minimized the errors introduced by the Kalman filter by using robust methods to represent the orientation and time update of the orientation, and decreased the nonlinearity be using a nonadditive error state Kalman filter in which the error state is combined with the real state using a nonlinear function (see the transfer of the orientation error in Figure 8). We used Quaternions [45] for a stable differentiable representation. To make the orientation model more linear, we used an indirect Kalman filter setup where the error states are estimated instead of the actual state. Due to this choice the error-state update is independent of the real state. Effectively we created an extended kalman Filter for the error state. If the error state is kept at zero rotation by transferring the error-state estimate to the real state estimate immediately after each measurement update, the linearization process for the Extended Kalman Filter [46] becomes very simple and accurate. In addition, we convert all orientation measurements to error-quaternions: . This makes the measurement model linear (the state is also an error-quaternion) and stable in case of large errors, at the expense of a nonlinear calculation of the measurement and its noise.

In simulations we found that the position sensor accuracy has the largest influence on the total filter accuracy in absence of orientation errors. Changing the sampling rates or using more accurate acceleration measurements had less influence. We can argue that when the process noise in acceleration (or angular velocity for that matter) due to the user's motion is high compared to the measurement noise of the inertia sensors, it is of little use to filter the inertia sensor measurements, meaning that a computationally cheaper model can be used in which the inertia sensors are treated as an input during the time update.

Figure 7 shows the process models of the two Kalman filters as we implemented them. The orientation-error Kalman filter at the top estimates errors in orientation and errors in gyroscope bias. The position-error filter estimates errors in position, speed, and accelerometer bias. When gyroscope and accelerometer data is received—they are transmitted simultaneously by the inertia tracker—all real states are updated. In addition, both filters perform a prediction step using their respective process models. In our current setup, we immediately transfer predicted errors to the real states, so the error states will always be zero—or more precisely, they indicate zero error. With zero error input, the output of the prediction step will also be zero. However, the uncertainty of this zero error will increase due the noisy measurements and the expected change in the acceleration and angular velocity. These expected changes should be provided by the application. In our demos we did not make special assumptions for the motions and used the same process noise values for all axes. For the position-error filter we could find a full solution for the process noise due to acceleration change and bias change. We could also find a full solution for the orientation-error filter's process noise. The resulting equation, however, was not practical for implementation. We further assumed the angular velocity to be zero and used the result presented in the figure. The process noise values can be increased a bit to account for the error in this extra assumption, but in practice these values are determined experimentally already.
Figure 7

The prediction steps of the two implemented error-state Kalman filters and separately maintained position and orientation states when gyroscope and accelerometer data is processed.

Figure 8

The measurement update step of the two implemented error-state Kalman filters. Received measurements are ordered in time, both filters and states are rolled back to the time of measurement t, and all measurements since then are reprocessed. Position and orientation measurements are used to estimate the current error states. The error states are immediately transferred to the real states.

Figure 8 shows how position and orientation measurements are incorporated in the observation update steps. The camera measurements have a delay and in order to calculate the best estimate, we reorder all measurements by their measurement time. Therefore, when a camera measurement is received, both error-state filters and the states themselves are rolled back synchronously to the closest state to the time , the capture time of the image for the camera pose measurement. All measurements taken after time will now be processed again, ordered in time. This reprocessing starts at state . Gyroscope and accelerometer measurements are again processed using the process models, and they will advance the state . Position and orientation measurements will be used to update the a priori estimates at state to a posteriori estimates in the observation update steps of the Kalman filters. First, these measurements need to be transformed into error observations. We do this using the nonlinear transformations, and thereby circumvent the linearization step of the measurement model for better accuracy. Then, these error measurements are incorporated using the standard Kalman observation update equations. The resulting estimates of the errors are transferred to the separately maintained states of position, orientation, bias and so forth. Hence, all pose estimates up to the present time will benefit from this update.

2.6. AR System Accuracies

Finally, we measured our complete tracking system: camera, inertia tracker and Kalman filter, using an industrial robot as controllable motion source and a marker at 3.2 m. The robot motions are shown in Figure 9. The positional accuracy of the system is shown in Figure 10. The values along the -axis were the most inaccurate. Without the filter to correct for the slow and delayed camera measurements, the positional error would be up to 20 cm depending on the speed of the robot (Figure 10(a)). With the filter, the accuracy is generally just as good as the accuracy of the camera measurements.
Figure 9

Motions of the SCARA robot in experiments 3 (a) and 4 (b). The pattern is located at x = 0.2 m, y = 3.2 m

Figure 10

Accuracies of the tracking system. (a): No filter, first order hold on pose estimate from the camera pose algorithm. (b), (c): The plusses show the camera poses and the dots show the Kalman output. (c): error when the ground truth orientation is used within the camera pose algorithm.

The camera pose shows a position dependent systematic error of up to 3 cm (Figure 10(b)). This proved to be due to a systematic error in the calculated orientation from the camera. When we correct for the orientation error, the positional error becomes less than 1 cm (Figure 10(c)). However, in normal situations the ground truth orientation will not be available. Using the orientation from the inertia tracker did not help in our experiments; the high accelerations are misinterpreted as orientation offsets, which introduces a systematic error in its output.

From our experiments we conclude that our data fusion does its task of interpolating the position in between camera measurements very well.

The tracking system has an update rate of 100 Hz. However, the pose estimates—albeit at 100 Hz—were less accurate than the estimates from the camera because of the high process noise (unknown jerk and angular acceleration from user movements).

We measured that the required orientation accuracy of 0. when moving slowly can be met only when the encountered systematic error in camera pose estimation is ignored: 1 cm at 3 m translates to . Since the camera is the only absolute position sensor, the encountered error of up to 4 cm ( ) cannot be corrected by inertia tracker data.

Ways to diminish this static error are the following.
  1. (i)

    View markers under an angle 2 . Viewing a marker straight on can introduce static pose errors in the range of . Markers should be placed such that the camera observes them mostly under an angle of greater than .


  2. (ii)

    Use multiple markers, spread out over the image; this will average the pose errors.


  3. (iii)

    Find ways to calibrate the lens better, especially at the corners.


  4. (iv)

    Use a better lens with less distortion.



A systematic static angular error leads to the fact that an acceleration measured by the inertia tracker is wrongly corrected. This is also visible in static situations due to the acceleration due to gravity. For example with a error, the Kalman filter will first output an acceleration of  cm/s2, which is slowly adjusted by the filter since the camera indicates that there is no acceleration. When the camera faces the marker again with a zero error, the wrongly estimated accelerometer bias now generates the same error but then in the other direction and hence this forms jitter on the pose of the virtual object. We found that the bias of the accelerometer itself is very stable. When the process noise for this bias is set very small, the bias will not suffer much from this systematic error. To counter a systematic orientation error it seems more appropriate to estimate a bias in the orientation. However, when the user rotates, other markers will come into view at another location in the image, with another bias. The real effective solution is to minimize camera orientation errors. However, knowing that systematic errors occur we can adapt our demos such that these errors are not disturbing, by letting virtual objects fly for instance. Of all errors, jitter is the most worrying. This jitter is due to noise in the camera image in bad illumination conditions and due to the wrong correction of the earth gravitational field. Note that the first jitter also occurs in, for example, ARToolkit. Jitter in virtual objects makes that it draws the attention of the user, as the human eye cannot suppress saccades to moving objects.

Finally, to make a working optical-see-through AR system, many extra calibrations are needed, such as the poses of the sensors, displays, and the user's eyes, all of them crucial for accurate results. Most of these calibrations were done by hand, verifying a correct overlay of the virtual world with the real world.

3. Application in Art, Design, and Cultural Heritage

In order to obtain insight in how the AR system performs also in qualitative sense, we tested it with artists and designers in various art, design, and cultural heritage projects. The application of artists and designers and curators is of course in no way a replacement for a full user study, but it did lead to some useful observations for the profitable use of the system. For this, within the context of the projects Visualization techniques for Art and Design (2006-2007) andInteractive Visualization techniques for Art and Design (2007–2009) the Royal Academy of Art (KABK), the Delft University of Technology (TUD), and various SME founded an AR lab [47] in which two prototype AR systems had been developed and tested. The aim of the first project was to research the applicability of AR technique in art and design and to disseminate the technology to the creative industry. The aim of the second project was to combine AR with interaction tools and disseminate the technology to public institutes like museums. The basic idea behind this cooperative projects was that AR technology is new; hence designing with it has no precedent and most probably needs a new approach. Like the first iron bridge (1781); being the first of its kind and therefore its design was based on carpentry, for example, using dovetails [48].

A number of projects have been realized within the context of the ARlab, some of which are recalled below.

30/1/2007 Augmented Letter Soup. The 325th anniversary of the typography design institute of the KABK leads to a project where AR was used to combine typography with interior and interaction design. Wearing the AR headset, users can experience a virtual, typographic interior placed in a real, physical environment and write text in augmented space using 3D, animated letters attached to tangible optical markers; see Figure 11.
Figure 11

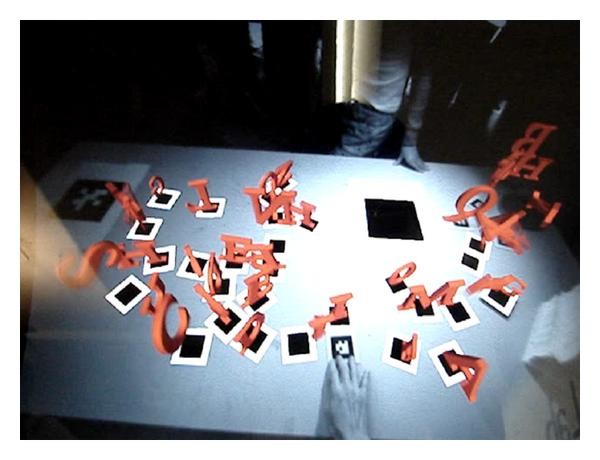

Forming sentences of dancing letters.

By juxtaposing the markers, representing letters of the alphabet, the visitors could write their own name or a short sentence of tumbling and jumping letters in 3D space. The rest of the audience, not wearing any AR device, could follow the augmented view of the headset users beamed on a projection screen. The following are the Lessons learned:
  1. (i)

    positioning virtual objects in the air covers up for static misalignment;


  2. (ii)

    motion of the virtual objects covers up for jitter; the human attention is already drawn and the jitter is less noticed. The same is true if the human moves;


  3. (iii)

    virtual objects are not bound to the floor, ceiling, walls, or tables; they only need to be within some distance to their nearest marker(s). This means that also information display and interaction does not necessarily have to take place on a wall or table, but might also take place in the air;


  4. (iv)

    the image of the tracker camera can also be used to beam the augmented view of the user on a screen, by which a broad audience can see (almost) through the user's eye.


10–15/4/2007. Augmented Reality Theater. It was an interactive installation at the unDEAF/DEAF festival with virtual 3D animated puppets in AR, data gloves, and physical objects tagged with RFID. Using a data-glove the user could control the position and face expression of an animated virtual puppet. In various physical objects an RFID tag was hidden, which was used to trigger changes in the behavior and looks of the puppet, Figure 12. The following are the Lessons learned:
Figure 12

Interaction using a data-glove.

  1. (i)

    using design packages such as Cinema 4D enlarges the possibilities of the interaction designers; making interaction with animated figures possible;


  2. (ii)

    for real 3D animated films with large plots, game engines must be used;


  3. (iii)

    manipulation of real objects that influence (through RFID) the virtual world is "magic" for many people;


  4. (iv)

    more image processing on the tracker camera is useful, for example, to segment the user's hand and fingers making unhandy data gloves superfluous.


21-22/9/2007. Out of the Blue. It was an audio-visual AR environment made of ellipsoid shapes coming out of and moving into the walls and float in 3D through the exhibition space. One sees and hears the objects flying through the 3D space. As the walls, floor, and ceiling had virtually been painted blue, the user seemed submerged, see Figures 13 and 14. The following are the Lessons learned:
Figure 13

Inverted AR experience.

Figure 14

Queuing for the AR experience.

  1. (i)

    the sounds that the ellipsoids made were coupled to their 3D position, which added to their pose recognition by the user and made it possible to draw his attention;


  2. (ii)

    by applying VR design techniques (i.e., normally in AR only objects are drawn; the walls and floors are taken from the real world) the virtual objects seem real and the real objects, that is, humans walking around, appear virtual or ghosts;


  3. (iii)

    the graphics rendering done on the laptop to generate the stereoscopic view does not show entirely geometric correct rendered images. Research is needed into rendering for AR headsets, taking the deformation of the presented images by the prisms into account;


  4. (iv)

    using image processing on the tracker, the camera can be used to segment walking persons, thus enabling virtual objects (e.g., birds) to encircle them realistically.


16–21/4/2008: At the Dutcheese exhibition at the Salone Internazionale del Mobile 2008 in Milan, apart from real furniture and textiles designs, a large space was augmented with animated furniture and interactive textile (RFID tagged). Two AR systems were simultaneously used, making it possible for the bearers to discuss the designs each from a different viewpoint; see Figures 15, 16, and 17. The following is the Lesson learned:
Figure 15

Touching the RFID tagged textiles at the pole changes the texture of the virtual curtains in the room.

Figure 16

Different viewpoints.

Figure 17

Virtual furniture designs; some are animated to show the assembly process.

  1. (i)

    Design discussions are more vividly using head-mounted AR in comparison with screen-based AR as each user can now individually select his viewpoint unhindered by the viewpoint selection of the other.


9–12/6/2008: In the Escher Museum an installation was made using mobile AR and a Nintendo Wii. It was related to the work of M. C. Escher and based on visual illusions and distortions in the perception of physical space. The user could use the Wii to throw a hole in the wall and have a look at the visitors climbing up the central staircase of the museum that was actually out of sight. See Figure 18. The following are the Lessons learned:
Figure 18

Using a Wii to throw a hole in the wall to see real visitors climb up a real staircase elsewhere in the building.

  1. (i)

    using a standard laptop is on the one hand rather heavy to wear but does enable fast connection of new interaction devices such as the Wii, but also webcams;


  2. (ii)

    webcams can be used to generate life video streams inside the virtual world.


25/10/2008–4/1/2009: Sgraffito in 3D. The Boijmans van Beuningen Museum exhibited its collection of Sgraffito objects from the period 1450–1550. Sgraffito is an ancient decorative technique in which patterns are scratched into the wet clay. This archaeological collection was made accessible for a broad public using 3D visualization and reconstruction techniques. The original objects were scanned in a CT system and after processing the data, the handmade plates, bowls and pots and their relief decorations were both rendered in virtual representations and rapid prototyped to provide 3D copies of the originals. In the exhibition, video projections show the actual CT scans; whereas the virtual renderings enable visitors to view the objects from all angles. The printed clones competed with the hundred original Sgraffito objects in the exhibition. In screen-based AR setups, the visitors could manipulate objects by manipulating special rapid prototyped pieces of the earthenware with markers or by browsing through a book of markers; at each page one object was visualized and explained in text and accompanied by music from the era of the pottery. Headset-based AR was used in a setup in which virtual plates and bowls could be arranged on a large table inviting for dinner, see Figures 19, 20, 21, 22, 23, and 24.
Figure 19

Late medieval earthenware in the CT scanner of the Erasmus Medical Centre.

Figure 20

AR visualization of cultural heritage using a rapid prototyped earthenware piece with marker.

Figure 21

The rapid prototypes can be touched.

Figure 22

Putting virtual plates on a real table.

Figure 23

Screen-based AR as low cost solution.

Figure 24

Cultural heritage in 3D over the web.

The following are theLessons learned:
  1. (i)

    augmented reality can be fruitfully used to attract a broad public to displays of cultural heritage. Its narrative power is huge;


  2. (ii)

    screen-based AR is a low cost replacement of HMD based AR and can be fruitfully used to introduce the topic at hand and the AR technology itself;


  3. (iii)

    HMD-based AR is at its best when a full immersive experience is required and people can walk around larger objects.


11/7/2009: Zwoele Zomeravond. In the Kröller Müller museum both outdoor screen-based AR as well as indoor head mounted AR was shown to a broad public see Figures 25, 26, and 27. The following is the Lesson learned:
Figure 25

Indoor/outdoor AR with an HMD.

Figure 26

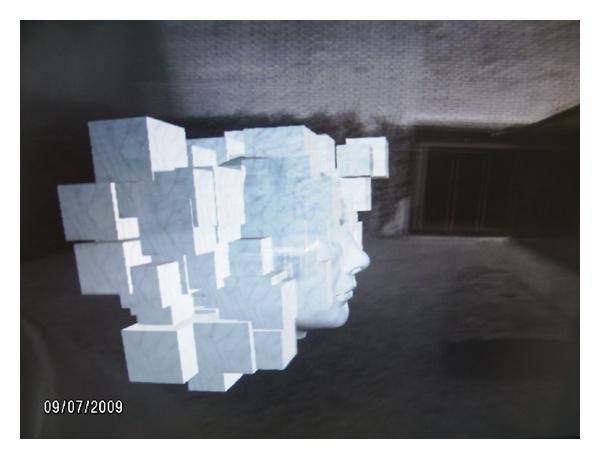

View of the user in the HMD.

Figure 27

Augmenting the Kröller Müller sculpture park.

  1. (i)

    for outdoor AR it is necessary that the ambient light intensity and the intensity of the LCD displays on the HMD are in balance. Hence also the real world light intensity needs to be controlled, for example, using self-coloring sunglass technology.



4. Conclusions

In this paper we described the design of an optical-see-through head-mounted system for indoor and outdoor roaming Augmented Reality (AR) and its quantitative and qualitative evaluation. Our ultimate goal was that virtual world objects are indistinguishable from real world objects. Hence, for optical see-through AR, measuring the head movements with respect to the physical world is mandatory. For the human head three motion classes can be distinguished: Stand-still—concentrating on an object. Smooth pursuit—following moving objects ( /s). Attention drawing—making jump moves with the head ( /s). As it makes no sense to have the alignment better than the resolution of the current headset displays, this forms the theoretical limiting factor for the head-pose tracking system: a static misalignment of 0.0 , a dynamic misalignment, when smoothly pursuing an object of 0. and a dynamic misalignment of 2. when an event in the image draws the attention. Based on these requirements we developed a head-mounted AR system, of which the hardest problem was to develop an accurate tracking system. We implemented a combination of camera and inertia tracking, alike the human visual/vestibular system. Although our ambition was to use natural features, we had to focus on a marker tracking camera system, as for now the processing of natural features is still too slow for this application. After realizing two prototypes, one of which incorporated a redesign of the head-mounted displays, making it more lightweight and open, we measured our system by mounting it on an industrial robot to verify if our requirements were met.

To obtain qualitative conclusions, an ARlab was founded with the Royal Academy of Art (KABK), the Delft University of Technology (TUD), and various SME as partners, and we tested the system with artists, designers, and curators in art, design, and cultural heritage projects. This collaboration provided us with very useful observations for profitable use of the system.

4.1. Quantitative Conclusions

We can conclude that our tracker based on the fusion of data from the camera and the inertia tracker works well at 100 Hz, albeit that the required orientation accuracy of when moving the head slowly (smooth pursuit) is just met with one  cm marker at 5 m distance when the camera's systematic orientation error can be calibrated away. Because the camera is the only absolute position sensor to "anchor" to the real world, these errors cannot be corrected by the inertia sensors. In addition, to obtain this error one has to view the markers under an angle of more than , which restricts the user's movements a bit. However, the real improvement should come from a more accurate lens calibration or better lens, and/or higher resolution cameras and/or putting more markers, with known geometric relations, in the field of view of the camera and/or using natural features in combination with markers. The current systematic error, that is dependent on the location of the marker in the image, is compensated by the Kalman filter using the bias states, leading to over and undershoots upon user movements. This leads to visible jitter of the virtual objects on top of jitter from noisy camera measurements when the marker is far away or the illumination conditions are not within range.

Although, the jitter is visible for the user, it is not as bad as it seems as the human eye seems to cope with it; the fovea tracks the virtual objects especially when they move.

4.2. Qualitative Conclusions

Lessons learned from experiments with audience on various events and exhibitions showed the following.
  1. (i)

    The augmented view can be peeked from the tracker camera and used to let the public see through the user's eye.


  2. (ii)

    Information display and interaction do not necessarily have to take place on a wall or table, but might also take place in the air.


  3. (iii)

    Positioning virtual objects in the air covers up for static misalignment.


  4. (iv)

    Motion of the virtual objects covers up for misalignment and jitter; the human visual attention is already drawn by the motion of the object. The same is true when the user moves.


  5. (v)

    Design packages such as Cinema 4D make design with animated figures possible. For real 3D animated films with large plots, game engines must be incorporated.


  6. (vi)

    Manipulation of real objects can influence (through RFID) the virtual world. This is "magic" for many people.


  7. (vii)

    More image processing on the tracker camera is useful, for example, to segment the user's hand and fingers making unhandy data gloves superfluous. Segmenting walking people enables virtual objects to encircle them.


  8. (viii)

    The sound that virtual objects make adds to their pose recognition and attention drawing.


  9. (ix)

    By applying VR design techniques, virtual objects appear real and real objects virtual.


  10. (x)

    More research is needed into the rendering of stereoscopic images for AR headsets, taking the deformation of the presented images by the prisms into account.


  11. (xi)

    Design discussions are more vividly using HMD based AR as each user can now individually select his (the best) viewpoint.


  12. (xii)

    Standard laptops are heavy to wear but enable easy connections to new interaction devices such as the Wii.


  13. (xiii)

    Life video streams inside the virtual world give a tele-presence awareness.


  14. (xiv)

    Screen-based AR is a low cost replacement of HMD based AR and can be fruitfully used to introduce the topic at hand and the AR technology itself.


  15. (xv)

    Headset-based AR is at its best when a full immersive experience is required and people can walk around larger objects.


  16. (xvi)

    For outdoor AR it is necessary that the ambient light intensity and the intensity of the LCD displays on the HMD are in balance.


  17. (xvii)

    Augmented reality can be fruitfully used to attract a broad public to displays of cultural heritage as a three-month exhibition in museum Boijmans van Beuningen in Rotterdam showed. Its narrative power is huge.



The collaboration between researchers in the area of image processing with artists, designers, and curators appeared to be very fruitful and has led to many amazing productions and exhibitions.

Declarations

Acknowledgments

This work was made possible by the SIA-RAAK projects Visualization Techniques for Art and Design (2006-2007) and Interactive Visualization Techniques for Art and Design (2007–2009). The authors thank all artists, designers, and curators for their contributions: Wim van Eck, Pawel Pokutycki, Niels Mulder, Joachim Rotteveel, Melissa Coleman, Jan Willem Brandenburg, Jacob de Baan, Mark de Jong, Marina de Haas, Alwin de Rooij, Barbara Vos, Dirk van Oosterbosch, Micky Piller, Ferenc Molnar, Mit Koevoets, Jing Foon Yu, Marcel Kerkmans, Alrik Stelling, Martin Sjardijn, and many staff, students, and volunteers.

Authors’ Affiliations

(1)
Dynamics and Control, Department of Mechanical Engineering, Eindhoven University of Technology
(2)
Bio-Robotics Lab, Faculty 3ME, Delft University of Technology
(3)
AR+RFID Lab, Royal Academy of Art, The Hague

References

  1. Milgram P, Takemura H, Utsumi A, Kishino F: Augmented reality: a class of displays on the reality-virtuality continuum. Conference on Telemanipulator and Telepresence Technologies, 1994, Boston, Mass, USA, Proceedings of SPIE 2351: 282-292.View ArticleGoogle Scholar
  2. Pausch R, Crea T, Conway M: A literature survey for virtual environments: military flight simulator visual systems and simulator sickness. Presence: Teleoperators and Virtual Environments 1992,1(3):344-363.View ArticleGoogle Scholar
  3. Hettinger LJ, Berbaum KS, Kennedy RS, Dunlap WP, Nolan MD: Vection and simulator sickness. Military Psychology 1990,2(3):171-181. 10.1207/s15327876mp0203_4View ArticleGoogle Scholar
  4. Stanney KM, Mourant RR, Kennedy RS: Human factors issues in virtual environments: a review of the literature. Presence: Teleoperators and Virtual Environments 1998,7(4):327-351. 10.1162/105474698565767View ArticleGoogle Scholar
  5. Persa S, Jonker P: On positioning for augmented reality systems. In Handheld and Ubiquitous Computing, Lecture Notes in Computer Science. Volume 1707. Edited by: Gellersen H-W. Springer, Berlin, Germany; 1999:327-329. 10.1007/3-540-48157-5_36View ArticleGoogle Scholar
  6. Jonker P, Persa S, Caarls J, de Jong F, Lagendijk RL: Philosophies and technologies for ambient aware devices in wearable computing grids. Computer Communications 2003,26(11):1145-1158. 10.1016/S0140-3664(02)00249-9View ArticleGoogle Scholar
  7. Caarls J, Jonker P, Persa S: Sensor fusion for augmented reality. Proceedings of the 1st European Symposium on Ambient Intelligence (EUSAI '03), November 2003, Veldhoven, The Netherlands 2875: 160-176.View ArticleGoogle Scholar
  8. Hirokazu K, Billinghurst M: Augmented reality toolkit. January 2009, http://www.hitl.washington.edu/artoolkit/Google Scholar
  9. The Lifeplus (Ist-2001-34545) Project MIRAlab, Geneva, Switzerland; FORTH, Heraklion, Greece, 2002–2004, http://lifeplus.miralab.unige.ch/HTML/results_visuals.htm MIRAlab, Geneva, Switzerland; FORTH, Heraklion, Greece, 2002–2004,
  10. Piekarski W: Interactive 3D modeling in outdoor augmented reality worlds, Ph.D. thesis. Wearable Computer Lab at the University of South Australia; 2004.Google Scholar
  11. Yohan SJ, Julier S, Baillot Y, et al.: BARS: Battlefield Augmented Reality System. Proceedings of the NATO Symposium on Information Processing Techniques for Military Systems, 2000 9-11.Google Scholar
  12. Mars project , July 2009 http://graphics.cs.columbia.edu/projects/mars/mars.html
  13. , January 2009 http://www.cybermindnl.com/
  14. , January 2009 http://www.prosilica.com/
  15. , January 2009 http://www.xsens.com/
  16. , January 2009 http://www.batteryspace.com/
  17. , January 2009 www.dell.com
  18. , January 2009 http://www.ubuntu.com/
  19. , January 2009 http://www.maxon.net/pages/products/cinema4d/cinema4d_e.html
  20. , January 2009 http://www.5dt.com/products/pdataglove5u.html
  21. Naimark L, Foxlin E: Circular data matrix fiducial system and robust image processing for a wearable vision-inertial self-tracker. Proceedings of the 1st International Symposium on Mixed and Augmented Reality (ISMAR '02), September-October 2002, Darmstadt, Germany 27-36.View ArticleGoogle Scholar
  22. , July 2009 http://en.wikipedia.org/wiki/Barcode/
  23. Lowe DG: Object recognition from local scale-invariant features. Proceedings of the Seventh IEEE International Conference on Computer Vision (ICCV '99), 1999, Kerkyra, Greece 2: 1150-1157.View ArticleGoogle Scholar
  24. Lowe DG: Distinctive image features from scale-invariant keypoints. International Journal of Computer Vision 2004,60(2):91-110.View ArticleGoogle Scholar
  25. Mikolajczyk K, Schmid C: A performance evaluation of local descriptors. IEEE Transactions on Pattern Analysis and Machine Intelligence 2005,27(10):1615-1630.View ArticleGoogle Scholar
  26. Bay H, Ess A, Tuytelaars T, Van Gool L: Speeded-Up Robust Features (SURF). Computer Vision and Image Understanding 2008,110(3):346-359. 10.1016/j.cviu.2007.09.014View ArticleGoogle Scholar
  27. Gauthier GM, Vercher J-L, Blouin J: Integrating reflexes and voluntary behaviours: coordination and adaptation controls in man. In Human and Machine Perception: Information Fusion. Edited by: Cantoni V, Gesu VD, Setti A, Tegolo D. Plenum Press, New York, NY, USA; 1997:189-206.View ArticleGoogle Scholar
  28. Cutting JE, Vishton PM: Perceiving layout and knowing distances. In Perception of Space and Motion, Handbook of Perception and Cognition. 2nd edition. Edited by: Epstein W, Rogers S. Academic Press, New York, NY, USA; 1995:70-118.Google Scholar
  29. Davison AJ: Real-time simultaneous localisation and mapping with a single camera. Proceedings of the 9th IEEE International Conference on Computer Vision (ICCV '03), 2003, Nice, France 2: 1403-1410.View ArticleGoogle Scholar
  30. Montemerlo M, Thrun S: FastSLAM: A Scalable Method for the Simultaneous Localisation and Mapping Problem in Robotics. Volume 27. Springer, Berlin, Germany; 2007.Google Scholar
  31. Haralick RM, Shapiro LG: Computer and Robot Vision. Volume 1. Addison-Wesley, Reading, Mass, USA; 1992.Google Scholar
  32. Haralick RM, Shapiro LG: Computer and Robot Vision. Volume 2. Addison-Wesley, Reading, Mass, USA; 1993.Google Scholar
  33. Harris CG, Stevens MJ: A combined corner and edge detector. In Proceedings of the 4th Alvey Vision Conference, August-September 1988, Manchester, UK. Volume 15. University of Manchester; 147-151.Google Scholar
  34. Ziou D, Tabbone S: Edge detection techniques—an overview. International Journal of Pattern Recognition and Image Analysis 1998, 8: 537-559.Google Scholar
  35. Torre V, Poggio TA: On edge detection. IEEE Transactions on Pattern Analysis and Machine Intelligence 1986,8(2):147-163.View ArticleGoogle Scholar
  36. Vass G, Perlaki T: Applying and removing lens distortion in post production. Proceedings of the 2nd Hungarian Conference on Computer Graphics and Geometry, 2003, Budapest, Hungary 9-16.Google Scholar
  37. Weng J, Cohen P, Herniou M: Camera calibration with distortion models and accuracy evaluation. IEEE Transactions on Pattern Analysis and Machine Intelligence 1992,14(10):965-980. 10.1109/34.159901View ArticleGoogle Scholar
  38. Zhang Z: A flexible new technique for camera calibration. IEEE Transactions on Pattern Analysis and Machine Intelligence 2000,22(11):1330-1334. 10.1109/34.888718View ArticleGoogle Scholar
  39. El-Melegy MT, Farag AA: Nonmetric lens distortion calibration: closed-form solutions, robust estimation and model selection. Proceedings of the 9th IEEE International Conference on Computer Vision, October 2003, Nice, France 1: 554-559.View ArticleGoogle Scholar
  40. Kalman RE: A new approach to linear filtering and predicting problems. Journal of Basic Engineering 1960, 82: 35-45. 10.1115/1.3662552View ArticleGoogle Scholar
  41. Julier SJ, Uhlmann JK: New extension of the Kalman filter to nonlinear systems. The 6th Signal Processing, Sensor Fusion, and Target Recognition Conference, April 1997, Orlando, Fla, USA, Proceedings of SPIE 3068: 182-193.Google Scholar
  42. Hol JD, Schön TB, Luinge H, Slycke PJ, Gustafsson F: Robust real-time tracking by fusing measurements from inertial and vision sensors. Journal of Real-Time Image Processing 2007,2(2-3):149-160. 10.1007/s11554-007-0040-2View ArticleGoogle Scholar
  43. Klein GSW, Drummond TW: Tightly integrated sensor fusion for robust visual tracking. Image and Vision Computing 2004,22(10):769-776. 10.1016/j.imavis.2004.02.007View ArticleGoogle Scholar
  44. Armesto L, Tornero J, Vincze M: Fast ego-motion estimation with multi-rate fusion of inertial and vision. International Journal of Robotics Research 2007,26(6):577-589. 10.1177/0278364907079283View ArticleGoogle Scholar
  45. Ickes BP: A new method for performing digital control system attitude computations using quaternions. AIAA Journal of Guidance, Control and Dynamics 1970,8(1):13-17.Google Scholar
  46. LaViola JJ Jr.: A comparison of unscented and extended Kalman filtering for estimating quaternion motion. Proceedings of the American Control Conference, June 2003, Denver, Colo, USA 3: 2435-2440.Google Scholar
  47. , January 2009 http://www.arlab.nl/
  48. , July 2009 http://en.wikipedia.org/wiki/The_Iron_Bridge

Copyright

© Jurjen Caarls et al. 2009

This article is published under license to BioMed Central Ltd. This is an open access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
